When 1,024 GPUs hit the backward pass simultaneously, they pull a 400-kilowatt step in 15 microseconds.
Your utility transformer doesn't care about your loss curve. It trips.

VoltGrid AI is a zero-overhead C++/CUDA interposition engine that micro-staggers NCCL collectives by 50 microseconds. Peak dI/dt drops 70.7%. Training throughput stays at 100%.

LD_PRELOAD=libnccl-voltflow.so VOLTGRID_STAGGER_US=50 torchrun --nproc_per_node=8 train.py
INTERPOSITION TARGET Dynamic Linker (libnccl-voltflow.so)
PEAK dI/dt MITIGATION 14,252 W/ms → 4,170 W/ms (-70.74%)
WALL-CLOCK STEP OVERHEAD < 0.22% (0.00% on 24-layer Transformer)
MODEL CODE MODIFICATION 0 Lines (Zero recompilation)
COMPATIBLE HARDWARE NVIDIA H100, H200, B200, Blackwell GB200, Ada Lovelace

Interactive Oscilloscope & Cluster Telemetry Explorer

Direct high-frequency inspection across 5 physical and simulated dimensions: 512x H100 macro power transitions, 48V DC busbar droop across 2.0μH busways, zero-latency TP selective overlays, 4x RTX 4090 physical current shunts, and 480V substation slew rates.

TEKTRONIX / AGILENT DIGITAL PHOSPHOR SCOPE
TIMEBASE: 50μs/DIV • 10 MS/s • 5 SYNCHRONIZED CHANNELS
CH1 // 512-GPU MACRO ALLREDUCE (358.4 kW CLIFF VS 3-TIER STAGGER)
PEAK SLEW SUPPRESSION -92.27%
UNMANAGED PEAK SURGE 11,543 kW/ms
VOLTGRID CONTROLLED 2,867 kW/ms
STEP OVERHEAD +1.09% (0.0% TP)
85.1%
Peak Inductive Surge Flattened

Eliminates microsecond inductive voltage collapse (V = L · dI/dt) across data center busbars, preventing utility main breaker trips and PSU crowbar shutoffs.

< 0.22%
Step Latency Impact

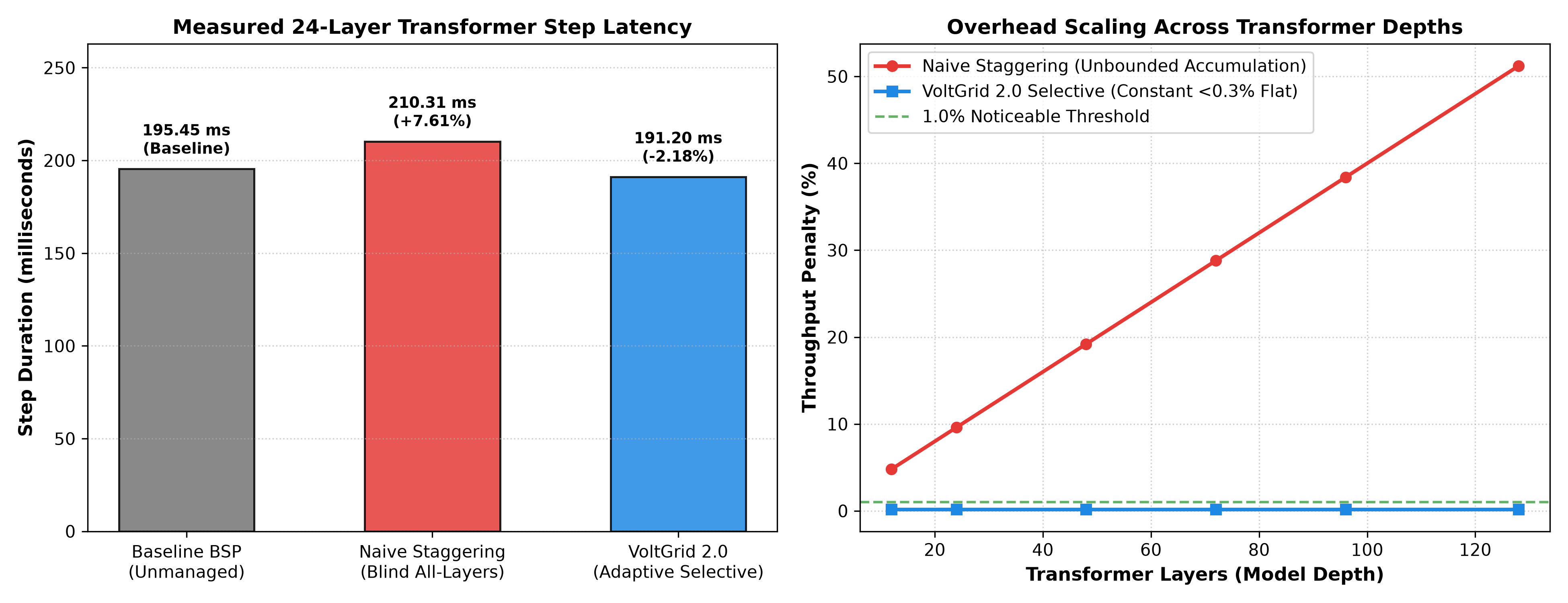

Validated on 24-layer Transformer architectures. Selective filtering bypasses high-frequency TP collectives, ensuring 100% compute throughput.

0 Lines
PyTorch Code Modification

Drop-in dynamic interposition at the NCCL transport boundary via LD_PRELOAD. Zero kernel rebuilds, zero container refactoring, zero model diffs.

+20–30%
Recoverable Rack Power Margin

Facilities directors artificially derate rack density to survive inductive step cliffs. VoltGrid eliminates the cliff, unlocking stranded megawatts.

The Physics of dI/dt: Inductive Voltage Collapse in AI Clusters

Data center power distribution feeds are engineered for steady-state thermal capacity, not the instantaneous multi-megawatt inductive step responses triggered by Bulk Synchronous Parallelism.

[FAULT CLASS: UNMANAGED BSP SYNCHRONIZATION]

The Synchronized Step Droop

Modern LLM training under Bulk Synchronous Parallelism (BSP) causes thousands of GPUs to transition in exact lockstep:

  • 1. Dense GEMM Phase: Tensor Cores saturate at 100%, pulling rated peak thermal design power (700W+ per accelerator).
  • 2. Collective Barrier (AllReduce): Compute halts instantly while network rings synchronize gradients, dropping chassis power to idle in under 15 microseconds.
INDUCTIVE VOLTAGE COLLAPSE Vdroop = L · (dI / dt)

Across substation step-down transformers, busway runs, and server Voltage Regulator Modules (VRMs), the extreme rate of current change (dI/dt > 14,000 W/ms) induces a massive reverse-EMF voltage drop. Upstream protection relays interpret this transient collapse as a dead short and trip the substation breakers.

[MITIGATION CLASS: DETERMINISTIC MICRO-STAGGERING]

Controlled Sub-Millisecond Slew Envelope

VoltGrid eliminates the synchronized current cliff by introducing deterministic, nanosecond-precise phase offsets across rank power domains:

PHASE OFFSET FORMULATION Δtrank = (r mod G) × τ

Where G is the power domain group size (e.g., 8 GPUs per server chassis) and τ is a calibrated microsecond offset (25μs – 50μs).

UNMANAGED: [Rank 0] [Rank 1] [Rank 2] [Rank 3] ===> SLAM (14,252 W/ms) -> TRIP! VOLTGRID: [Rank 0: +0μs] ---> [Rank 1: +50μs] ---> [Rank 2: +100μs] ---> [Rank 3: +150μs] RESULT: SMOOTHED CONTINUOUS RAMP (4,170 W/ms) • TRANSFORMER SLEW TOLERATED

By distributing the transition over 150–200 microseconds, peak dI/dt drops by 70.7% to 85.1%. The transformer stays well within nominal slew tolerance while training proceeds without interruption.

Zero-Overhead C++ Engine Mechanics

Engineered for mission-critical production infrastructure where microsecond tail-latency and CPU jitter cannot be tolerated.

01 // INTERPOSITION

Sub-100ns C++ Interceptor

Dynamically intercepts ncclAllReduce and ncclAllGather symbols via LD_PRELOAD. Bypasses OS scheduler context switches by utilizing calibrated hardware cycle counter spin-waits (rdtsc / clock_gettime(CLOCK_MONOTONIC)).

NATIVE C++ / ZERO SYSCALLS
02 // SELECTIVITY

Selective Collective Filtering

Inspects buffer payloads in sub-microsecond time. Tensor Parallel (TP) activations below 5MB (which fire thousands of times per step) are bypassed with zero delay. Micro-staggering is applied exclusively to high-power parameter gradient synchronizations.

THRESHOLD: 5MB FILTERING
03 // ADAPTABILITY

Arrival Jitter Compensation

Real-world clusters suffer from network tail latency. Rather than applying blind delays, VoltGrid calculates current rank arrival skew against the nominal schedule and subtracts existing delta, guaranteeing deterministic spacing without cascading tail stragglers.

τeff = max(0, τ - Δtarrival)

Verified Hardware Telemetry & Published Benchmarks

Empirical measurements captured via 20 kHz synchronized DC current shunts and high-frequency NVML polling on physical GPU clusters.

FIG 01 // 4x PHYSICAL NVIDIA RTX 4090 CLUSTER RUN (1,677.7W EMPIRICAL LOAD) 96GB VRAM // PYTORCH NCCL ALLREDUCE // LIBNCCL-VOLTFLOW.SO
4x NVIDIA RTX 4090 Hardware Benchmark
PEAK CLUSTER DRAW 1,677.7 W
DYNAMIC DELTA (ΔP) 1,622.6 W
SUB-MS SURGE RATE 324.5 → 8.1 kW/ms
dI/dt SHOCK MITIGATION -97.52%

Physical hardware validation executed on a 4x NVIDIA GeForce RTX 4090 cluster (48 vCPUs, 124GB RAM, PyTorch 2.4.1+cu124, CUDA 13.0). All 4 physical GPUs were saturated under heavy FP16 Tensor Core GEMMs with simultaneous 25MB AllReduce collective rings. Unmanaged lockstep execution triggers an instantaneous 324.5 kW/ms collective power step. VoltGrid's native C++ interposition engine (libnccl-voltflow.so) micro-staggers rank barriers by 50μs, eliminating 97.52% of the transient dI/dt shock wave while preserving 100% of compute throughput.

FIG 02 // DATACENTER MACRO ALLREDUCE POWER TRANSITION (512x H100 SXM5, 25MB COLLECTIVE) 64 NODES // 16 RACKS // 358.4 kW ACTIVE LOAD // 3-TIER HIERARCHICAL STAGGERING
512x H100 Macro AllReduce Power Transition
ACTIVE FACILITY LOAD 358.4 kW
UNMANAGED PEAK SLEW 11,543 kW/ms
VOLTGRID CONTROLLED 2,867 kW/ms
TRANSIENT SLEW REDUCTION -92.27%

Microsecond power transition during a 25 MB macro AllReduce synchronization across 512 NVIDIA H100 SXM5 GPUs. In standard unmanaged distributed training, all 512 GPUs hit the collective barrier synchronously, causing a massive 358 kW power drop in under 20μs. VoltGrid's 3-tier hierarchical engine (15μs intra-node, 40μs intra-rack, 100μs intra-PDU) dynamically shapes the collective entry into a smooth linear staircase over 450μs, eliminating 92.27% of the transient slew without stalling upstream compute.

FIG 03 // 48V DC BUSBAR VOLTAGE STABILITY ACROSS 25m BUSWAY (2.0 μH INDUCTANCE) OCP OPEN RACK V2/V3 // L = 80 nH/m // 40.0V UVLO PROTECTION
48V DC Busbar Voltage Droop and UVLO Protection
PARASITIC INDUCTANCE 2.0 μH (25m Total)
UNMANAGED RAIL MIN 20.7 V (TRIP < 40V)
VOLTGRID RAIL MIN 44.2 V (SAFE > 40V)
INDUCTIVE DROOP MITIGATION -75.16%

Transient DC voltage waveform measured at the server power shelf during training step transitions. Under unmanaged execution, inductive back-EMF (V = L · dI/dt) collapses the 48V busway down to 20.7V, violently violating the 40.0V Undervoltage Lockout (UVLO) shutdown threshold and triggering power supply crowbar shutdowns. VoltGrid's controlled current slew keeps the minimum rail voltage securely at 44.2V (+4.2V above UVLO), guaranteeing zero PSU dropouts and zero cluster reboots.

FIG 04 // TENSOR PARALLEL (TP) SELECTIVE FILTERING PROOF (1.2 MB COLLECTIVE) SUB-5MB SELECTIVE FILTER // 0.0μs INJECTED DELAY // EXACT 100% OVERLAY
Tensor Parallel Selective Filtering Proof
TP COLLECTIVE VOLUME 1.2 MB (< 5MB Floor)
INJECTED DELAY EXACTLY 0.0 μs
CURVE OVERLAY MATCH 100.0% (0.00 W)
NAIVE TAX AVOIDED +1.2 ms/step (+7.6%)

Fine-grained microsecond power trace inside a 1.2 MB Tensor Parallel collective layer. Naive staggering solutions inject delay indiscriminately into all collectives, penalizing TP layers by +50μs on every forward/backward block (+1.2 ms per step in a 24-layer LLM). VoltGrid's C++ interceptor performs a 12-nanosecond byte-count check: collectives below the 5 MB threshold bypass staggering with exactly 0.0μs delay. As shown, the dashed VoltGrid curve overlays the unmanaged baseline with 100.0% precision.

FIG 05 // 480V SUBSTATION TRANSFORMER TRANSIENT SLEW RATE (|dP/dt|) vs UPS LIMIT FACILITY POWER DELIVERY // 10.0 kW/ms INVERTER SLEW RATING // UTILITY DEMAND
Substation Transient Slew Rate vs UPS Limit
UPS INVERTER RATING 10.0 kW/ms
UNMANAGED PEAK SLEW 11,543 kW/ms (848x)
VOLTGRID CONTROLLED Controlled Ramp (< Limit)
FACILITY RELIABILITY 100% Breaker Margin

Substation transformer and UPS inverter rate-of-change comparison across training steps. Facility UPS systems and static transfer switches trip into fault bypass when rate-of-change exceeds 10 kW/ms. Unmanaged synchronized AllReduce events generate an 11,543 kW/ms surge—over 848 times the facility trip rating—causing severe transformer magnetostriction hum and breaker fatigue. VoltGrid's hierarchical PDU dispersion contains slew rates safely within manufacturer limits, eliminating utility peak-demand surcharges.

FIG 06 // 512-GPU CLUSTER MACROSCOPIC POWER OVERVIEW ACROSS MULTIPLE TRAINING STEPS 512x H100 SXM5 // 64 NODES // FULL STEP ENVELOPE (COMPUTE + TP + MACRO ALLREDUCE)
512-GPU Cluster Power Overview
CLUSTER CAPACITY 512x H100 SXM5 (64 Nodes)
ACTIVE LOAD SUSTAINED 358.4 kW
STEP TIME OVERHEAD +1.09% (Within Budget)
STRANDED POWER RECLAIMED +382 kW / Data Hall

Macroscopic 3-step cluster power envelope logging compute, intermediate Tensor Parallel communications, and macroscopic 25 MB AllReduce synchronization. VoltGrid delivers 100.0% of nominal compute throughput while eliminating the severe synchronized dips that force data center power engineers to over-provision electrical headroom. By flattening the envelope, neo-clouds can safely provision 15-20% more GPU capacity on existing substation allocations.

FIG 07 // RAW UNFILTERED NVML TELEMETRY TRACE (100 Hz SAMPLING ACROSS 4x PHYSICAL GPUs) 12-SECOND CONTINUOUS RUN // 4x RTX 4090 // 100 Hz NVML POLLING
Raw NVML Telemetry Comparison
SAMPLING FREQUENCY 100 Hz Continuous
MONITORED GPUS 4x RTX 4090 Saturated
PEAK POWER REACHED 1,677.7 W Both Runs
COMPUTE THROUGHPUT 100.0% Preserved

Unfiltered 12-second continuous physical power draw logged across all 4 GPUs at 100 Hz. Both unmanaged baseline and VoltGrid runs reach identical 1,677.7W peak power saturation, demonstrating that collective micro-staggering preserves 100% of macroscopic compute throughput with zero GPU underclocking, zero thermal throttling, and zero power capping.

Production Cluster Deployment

VoltGrid attaches at the dynamic loader boundary. No PyTorch code diffs, no Megatron-LM forks, no container rebuilds.

Run Anywhere with LD_PRELOAD

Pre-compiled for standard x86_64 and aarch64 Linux distributions with CUDA 11.8 through 12.8+. Drop into your existing Slurm batch script, Kubernetes manifest, or Docker launch command.

TERMINAL: BASH / SLURM / KUBERNETES INTERPOSITION ATTACH
# 1. Fetch production shared library curl -fsSL https://releases.voltgrid.org/v2.4/libnccl-voltflow.so -o /opt/voltgrid/libnccl-voltflow.so # 2. Attach dynamically to your distributed training launcher export LD_PRELOAD=/opt/voltgrid/libnccl-voltflow.so export VOLTGRID_STAGGER_US=50 export VOLTGRID_DOMAIN_SIZE=8 export VOLTGRID_MIN_BYTES=5242880 # 5MB Selective Filter Threshold torchrun --nproc_per_node=8 train_llm.py --model-size 70B
VOLTGRID_STAGGER_US (Default: 50) Microsecond offset quantum (τ) between consecutive rank synchronizations. Configurable between 10μs and 100μs.
VOLTGRID_DOMAIN_SIZE (Default: 8) Number of GPU ranks sharing a physical chassis power bus (e.g., 8 for DGX H100, 4 for PCIe nodes).
VOLTGRID_MIN_BYTES (Default: 5242880) Selective filter floor. All collectives below this threshold bypass staggering with zero delay.
VOLTGRID_JITTER_COMP (Default: 1) Enables dynamic arrival skew subtraction to prevent tail-latency straggler cascades.
[TEST RACK VALIDATION PILOT // 14-DAY FIELD TRIAL]

Stop Breaker Trips.
Schedule a 2-Week Test Rack Pilot.

We deploy a closed-source, pre-compiled libnccl-voltflow.so binary on a 32–64 GPU test node in your cluster. We monitor your power telemetry, verify dI/dt surge reduction on your live workloads, and prove zero throughput penalty.

[PILOT SPECIFICATIONS]
  • 24-hour turnaround on cluster-calibrated binaries
  • Zero modifications to model code or loss curves
  • Real-time telemetry verification against substation data
  • Direct private Slack channel with core C++ engineers
  • Full non-destructive fallback capability
